1. AB and AC are two tangents drawn from point A to a circle with center O. The line OA intersects the chord BC (which joins the points of contact) at point M. If AM = 8 cm and BC = 12 cm, then what is the length of each tangent?

(a) 8 cm (b) 10 cm (c) 12 cm (d) 16 cm

2. If a circle has a radius of 5 cm and a tangent is drawn from an external point \(P\) to the circle with a length of 12 cm, what is the distance from the center to point \(P\)?

3. From an external point A, a tangent AB is drawn to a circle centered at O, touching the circle at point B. If OB = 5 cm and AO = 13 cm, find the length of AB.

(a) 12 cm (b) 13 cm (c) 6.5 cm (d) 6 cm

4. In the adjacent figure, a circle is centered at point O. From an external point C, two tangents are drawn to the circle, touching it at points P and Q respectively. Another tangent is drawn at point R on the circle, which intersects the tangents CP and CQ at points A and B respectively. If CP = 11 cm and BC = 7 cm, then find the length of BR.

5. A tangent is drawn from an external point A to a circle centered at O, touching the circle at point B. Given: OB=5 cm, AO=13 cm, Find the length of AB.

(a) 12 cm (b) 13 cm (c) 6.5 cm (d) 6 cm

6. From an external point located 17 cm away from the center of a circle with a diameter of 16 cm, what is the length of the tangent drawn to the circle?

7. AB is a chord of a circle with center O. From point O, a perpendicular OP is drawn to the chord AB. The extended line OP intersects the circle at point C. If AB = 6 cm and PC = 1 cm, then what is the radius of the circle?

8. Point P is an external point to a circle with center O. The distance from point P to the center of the circle is 26 cm, and the length of the tangent drawn from point P to the circle is 10 cm. The radius of the circle is ____ cm.

9. From an external point \(P\), two tangents \(PS\) and \(PT\) are drawn to a circle with center \(O\). \(QS\) is a chord of the circle that is parallel to \(PT\). If \(\angle SPT = 80^\circ\), then what is the measure of \(\angle QST\)?

10. The radius of a circle with center \(O\) is 5 cm. Point \(P\) is located at a distance of 13 cm from \(O\). From point \(P\), two tangents \(PQ\) and \(PR\) are drawn to the circle. Find the area of the quadrilateral \(PQOR\).

(a) \(60\) square cm (b) \(30\) square cm (c) \(120\) square cm (d) \(150\) square cm

11. Two tangents are drawn to a circle from points A and B on the circumference, and they intersect at point C. Another point P lies on the circumference, on the side opposite to where point C is located with respect to the center. If \(\angle\)APB = 35°, then what is the measure of \(\angle\)ACB?

(a) 145° (b) 55° (c) 110° (d) None of the above

12. AB is a diameter of a circle with center O. P is any point on the circle. Tangents are drawn at points A and B, which are intersected by the tangent drawn from point P at points Q and R respectively. If the radius of the circle is \(r\), prove that \(PQ \cdot PR = r^2\).

13. Draw an equilateral triangle ABC with each side measuring 5 cm. Then, draw the circumcircle of that triangle. At point A on the circle, draw a tangent. On the tangent, take a point P such that AP = 5 cm. From point P, draw another tangent to the circle, and write down which point on the circle this second tangent touches.

14. The radius of a circle with center O is 5 cm. From an external point P, which is located at a certain distance from point O, two tangents PQ and PR are drawn to the circle. The quadrilateral PQOR has an area of 60 square centimeters. Find the distance from point O to point P.

15. Here’s the English translation: Inside a circle with center O, point P is any point. The radius of the circle is 13 cm, and OP = 12 cm. Find the minimum length of a chord that passes through point P.

(a) 5 cm (b) 6 cm (c) 6.5 cm (d) 10 cm

16. In the circle with center \( O \), if \( AOB \) is a diameter and point \( C \) is on the circle such that \( AC = 3 \) cm and \( BC = 4 \) cm, what is the length of \( AB \)?

(a) 3 cm (b) 4 cm (c) 5 cm (d) 8 cm

17. In a circle with center \(O\), \(\bar{AB}\) is a diameter. On the opposite side of the circumference from the diameter \(\bar{AB}\), there are two points \(C\) and \(D\) such that \(\angle AOC = 130°\) and \(\angle BDC = x°\). Find the value of \(x\).

(a) 25° (b) 50° (c) 60° (d) 65°

18. From a point outside a circle, a tangent of length 8 cm is drawn to the circle. If the radius of the circle is 6 cm, what is the distance from the center of the circle to the external point?

(a) 10 cm (b) 8 cm (c) 6 cm (d) 14 cm

19. From point A, which is located 26 cm away from the center O of a circle, a tangent is drawn to the circle with a length of 10 cm. Find the radius of the circle.

20. In an isosceles triangle ABC, AB = AC. A circle is drawn with AB as the diameter, and it intersects side BC at point D. If BD = 4 cm, find the length of CD.

21. From an external point P, two tangents PA and PB are drawn to a circle centered at O. If PA = 9 cm and ∠APB = 60°, then what are the measures of ∠PAB and the length of chord AB?

(a) 9 cm (b) 3 cm (c) 6 cm (d) 12 cm

22. From an external point \(P\), two tangents \(PA\) and \(PB\) are drawn to a circle centered at \(O\). Given \(PA = 9\) cm and \(\angle APB = 60°\), find the length of \(AB\).

23. From an external point \(P\), a tangent is drawn to a circle centered at \(O\), touching the circle at \(R\). Given \(OR = 15\) cm and \(PR = 8\) cm, find \(OP\).

(a) 17 cm (b) 7 cm (c) 23 cm (d) 20 cm

24. AB is the diameter of a circle with center O. From a point P on the circle, a perpendicular PN is drawn to AB. Prove: \(PB^2 = AB \times BN\).

25. If a circle is centered at point 'O' with a radius of 13 cm and chord AB has a length of 10 cm, what is the distance from point 'O' to chord AB?

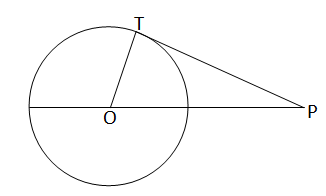

26. I have drawn a circle with center O and radius 6 cm. From a point P located 10 cm away from the center O, a tangent PT is drawn to the circle. Calculate and write the length of the tangent PT.

27. A circle is drawn with diameter \(AB\) and center \(O\). From a point \(P\) on the circle, a perpendicular is drawn to the diameter \(AB\), intersecting it at point \(N\). Prove that: \[ PB^2 = AB \cdot BN \]

28. Let's draw a circle with a radius of 2.5 cm. Take a point outside the circle that is 6.5 cm away from the center. Then, draw a tangent to the circle from that external point and measure the length of the tangent using a ruler.

29. From an external point \(A\), two tangents \(AP\) and \(AQ\) are drawn to a circle centered at \(O\), touching the circle at points \(P\) and \(Q\) respectively. If \(PR\) is a diameter of the circle, prove that \(OA \parallel RQ\).

30. We have drawn two circles with centers \(A\) and \(B\), which touch each other externally at point \(C\). A point \(O\) lies on the common tangent at point \(C\), and tangents \(OD\) and \(OE\) are drawn from point \(O\) to the circles centered at \(A\) and \(B\), touching them at points \(D\) and \(E\) respectively. It is given: - \(\angle COD = 56^\circ\) - \(\angle COE = 40^\circ\) - \(\angle ACD = x^\circ\) - \(\angle BCE = y^\circ\) We are to prove: - \(OD = OC = OE\) - \(x - y = 4^\circ\)
